🎨 Design & Style

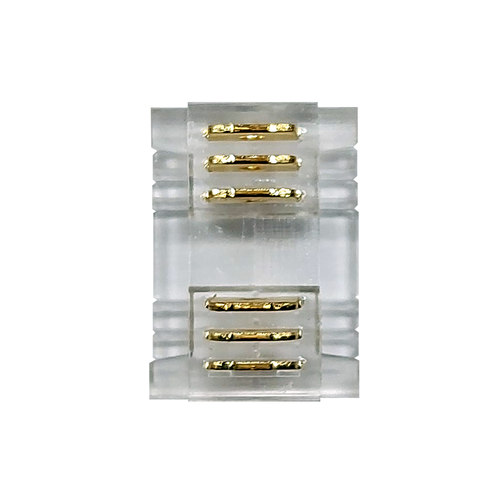

Compact connector for COB RGB + CCT LED strips, 12 mm wide PCB with 6 pins. Designed for quick, solder-free connections between two strip sections or from strip to cable/controller. Transparent or polycarbonate housing allows discreet installation inside profiles, channels, or decorative features.
📏 Dimensions & Installation
• Compatible Strip Width: 12 mm PCB
• Pin Count: 6 — for R, G, B, CW, WW, and +
• Installation: Insert the LED strip under metal contacts and close the top until it clicks — no soldering required
⚙ Technical Specifications
• Compatibility: For COB RGB + CCT LED strips, 12 mm wide
• Pin Configuration: 6 pins for full color and dual white control
• Protection: IP20 — for dry, indoor use
• Max Operating Voltage: up to 24 V DC, approx. 3–3.5 A total
• Easy Installation: Tool-free; the top cover ensures reliable contact with the strip’s copper pads
✅ Advantages
• Solder-free connection — fast installation without a soldering iron
• Supports RGB + CCT COB strips — handles all control signals
• Compact size — fits tight spaces like profiles, niches, or furniture
• Flexible application — connects two strips or a strip to a controller/cable
