🎨 Design & Style

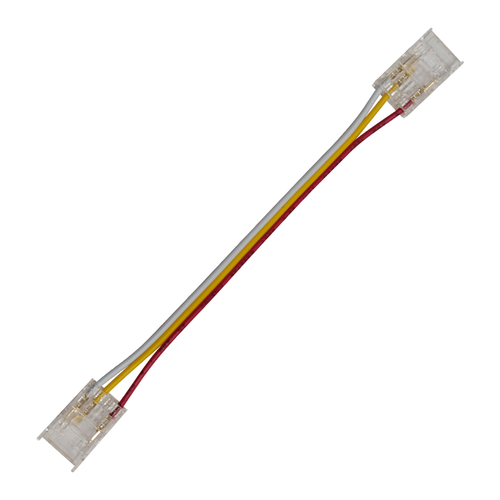

A compact connector for COB CCT LED strips with 10 mm PCB width and a 3‑wire cable exiting from the middle of the connector. Designed for seamless mid‑run connections between two LED strips via a cable, eliminating the need for soldering and enabling clean, professional installations.
📏 Dimensions & Installation
• Compatible With: COB CCT LED strips with a 10 mm PCB
• Wire Count: 3 (V+, CW, WW) — common + and two white channels (cool and warm) of the CCT strip
• Middle Cable: The connector includes a cable extending from the center, ideal when strips are offset or need routing around obstacles
• Installation: The LED strips slide under metal contacts inside the connector and snap into place — no soldering required
⚙ Technical Specifications
• LED Type: COB CCT — dual‑white LED strip supporting color temperature adjustment
• Operating Voltage: typically DC 12–24 V
• Max Current: ~3–5 A depending on strip specifications
• Protection Rating: IP20 — suitable for indoor use
• Material: Plastic/polycarbonate housing with metal contacts for reliable electrical connection
• Seamless Light: Designed for even illumination with no dark gaps between connected segments
✅ Advantages
• Easy installation — no soldering or special tools needed
• Flexible connection — the middle cable allows joining strips that are not directly adjacent or around obstacles
• Supports CCT control — preserves tunable white functionality for both warm and cool channels
• Compact and discreet — great for tight spaces, LED profiles, and decorative setups
• Continuous light output — avoids dark lines or gaps between connected LED runs
