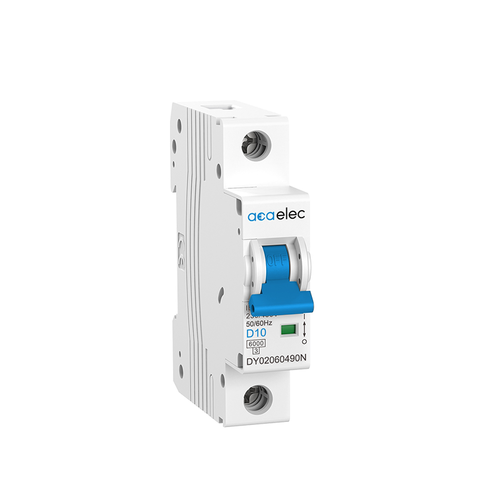

MINIATURE CIRCUIT BREAKER (MCB) 1P D10 6kA
🎨 Design & Style
A standard modular circuit breaker designed for installation in electrical distribution boards. Its industrial and compact design ensures safety and efficient use of space. Its primary purpose is to protect electrical circuits and equipment from damage caused by overcurrent and short circuits.
📏 Dimensions & Mounting
Poles: 1P (Single Pole) – for protecting a single live conductor.
Modules: 1M (One Module) – standard width, compatible with all DIN rails.
Mounting: Designed for DIN rail installation within an electrical distribution board.
Application: For indoor use in residential, commercial, and industrial installations.
⚙ Technical Specifications
Rated Current: 10 A (Amperes).
Breaking Capacity: 6 kA (kiloamperes) – the maximum short-circuit current it can safely interrupt.
Tripping Curve: D Curve – provides delayed overload tripping and is suitable for circuits feeding loads with high inrush currents (e.g., motors, transformers).
Type: MCB (Miniature Circuit Breaker).
Voltage: 230 V AC (standard for single-pole breakers).
✅ Advantages
High Protection: D Curve and 6kA breaking capacity ensure reliable protection for industrial and specialized circuits.
Safety: Automatically interrupts the circuit in case of short circuit or overload, preventing fire and damage.
Standardization: Complies with modular standards, making it easy to replace and install.
