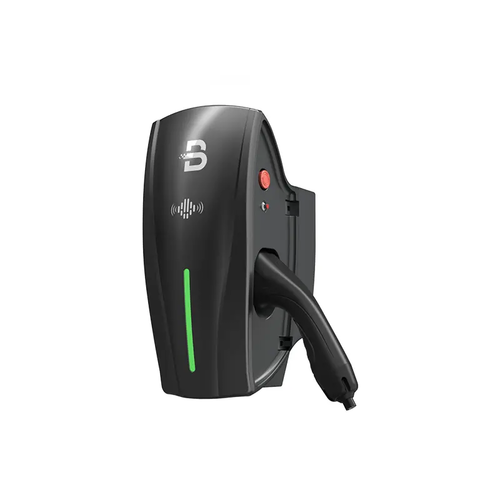

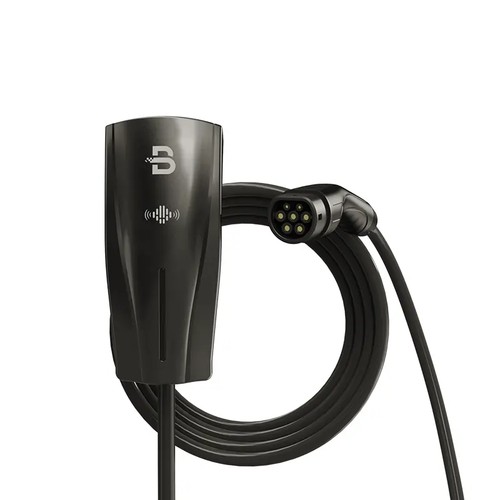

EV CHARGER TYPE 3 1PH 32A 7,4KW WITH 5m TETHERED CABLE TYPE 2

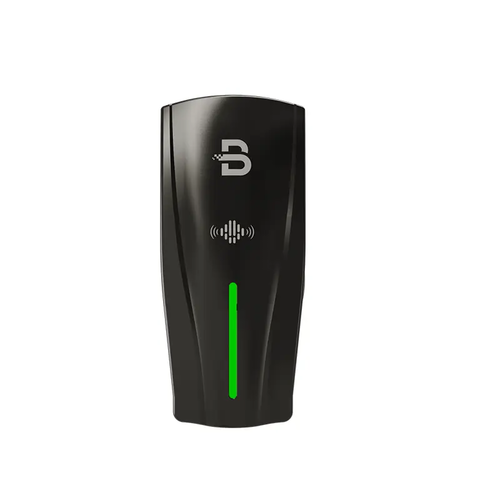

EV CHARGER TYPE 3 1PH 32A 7,4KW WITH 5m TETHERED CABLE TYPE 2 - изображение 3

Product description

🎨 Design & style

A compact and modern electric vehicle charging station, suitable for home or office use.
Features an integrated cable (tethered cable) for maximum convenience during charging.
Discreet design intended for permanent wall or pole mounting.

📏 Dimensions & installation

Installation: Wall or Mounting Pole, providing flexibility in placement choice.
Charging cable length: 5 meters, ensuring sufficient reach.
Working temperature: -25°C to +55°C, suitable for various climatic conditions.

⚙️ Technical specifications

Charger Type: AC EV Charger Type 3.
Power Supply: 1-Phase (1PH) at 230V AC.
AC Output Power: 7.4KW at 32A current.
Connector: Type 2 / IEC 62196/2.
Integrated Protections: Full protection against overload, short circuit, over/under voltage, leakage, and over temperature.
Protection Index: IP65 (dust and water resistance) and IK10 (impact resistance).
Connectivity: Wi-Fi, Ethernet, RS-485, and optional 4G OCPP1.6.

✔️ Advantages

High power output of 7.4KW for fast charging on single-phase installations.
IP65 and IK10 protection guarantee exceptional durability in all outdoor conditions.
Ability to control via RFID card or Mobile APP for easy management and access.
The integrated 5m Type 2 cable eliminates the need for a separate cable.

Product characteristics

Overload Protection	Yes
Working Temperature	-25°C~+55°C
Charging Portal	Type 2 / IEC 62196/2
Leakage Protection	Yes
AC Output Rating Current	32A
Installation	Wall / Mounting Pole
Over Temp Protection	Yes
Short Circuit Protection	Yes
Grounding Protection	Yes
Power Line Protection	Yes
Control	Via RFID card or Mobile APP
Over & Under Voltage Protection	Yes
Integrated Cable	Yes
Charging Cable Length	5m
IK- Impact Protection Indicator	IK10
Surge protection	Yes
Connectivity	Ethernet RJ45/Wi-Fi/RS-485/4G OCPP1.6 Optional
Power Supply	1-Phase
AC Output Rating Power	7,4KW
IP- Fluid and Dust Protection Indicator	IP65
Voltage (Volt)	230V AC

801.60 € / 1 567.79 лв.

Stock in Bulgaria

Out of stock

Stock in EU

Upon request

Product code: BCP-A2N-L

Package length: 480.00mm

Package width: 278.00mm

Package height: 480.00mm

Weight: 7.50g

Information about technical characteristics, equipment, country of origin and appearance of the product is for reference only and is based on the latest available information from the manufacturer.
