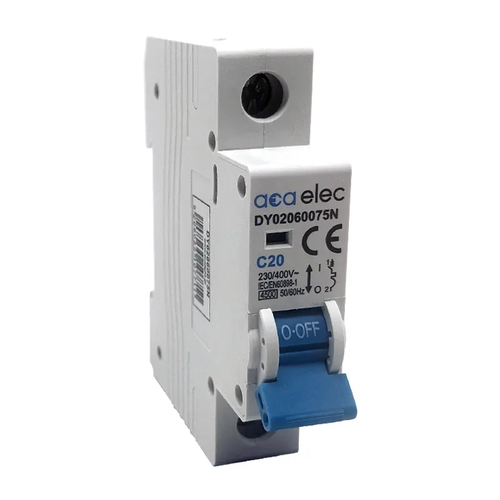

Miniature Circuit Breaker (MCB) designed for DIN rail mounting in electrical distribution boards.
The design is modular and compact, in standard colors for this type of device (white/grey housing with a colored toggle).
Suitable for providing circuit protection in residential and light commercial installations.
📏 Dimensions & mounting
Size: 1 Module (1M), the standard narrowest width for DIN rail mounting.
Designed for DIN Rail Mounting, ensuring easy and secure fastening.
Single-pole (1P), used for protecting a single current path (phase).
⚙️ Technical characteristics
Device Type: MCB (Miniature Circuit Breaker).
Number of Poles: 1P (Single-pole).
Rated Current: 20 A.
Tripping Curve: C (Suitable for general lighting, sockets, and small motors).
Breaking Capacity: 4.5 kA (4500 A).
✔️ Advantages
Provides reliable protection for installations against overcurrent and short circuits.
20A rated current, ideal for more heavily loaded sockets or appliances.
Compact size (1M), which saves space in the electrical cabinet.
'C' Curve ensures balanced sensitivity for general-purpose applications.
2.54 € /4.98 лв.
Minimum order from: 12 pcs.
Stock in Bulgaria
In stock
Delivery 2-4 working days
Stock in EU
Upon request
Product code:DY02060075N
Package length: 0.45mm
Package width: 0.23mm
Package height: 0.45mm
Information about technical characteristics, equipment, country of origin and appearance of the product is for reference only and is based on the latest available information from the manufacturer.
