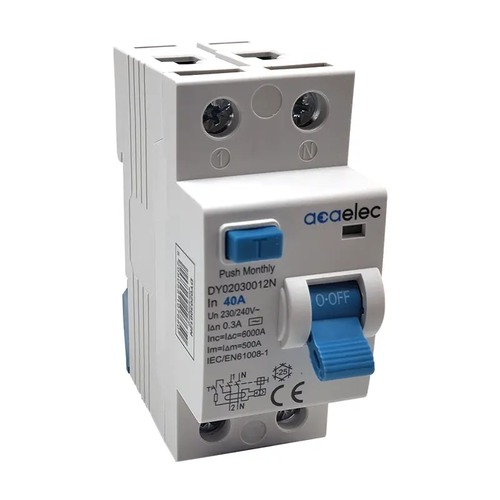

Compact residual current circuit breaker type RCCB (Residual Current Circuit Breaker).
Designed for DIN rail mounting, featuring a standard industrial design.
Occupies two modular spaces (2M) in the electrical panel.
📏 Dimensions & Assembly
Designed for mounting on a DIN rail in electrical distribution boards.
Package dimensions: 47.50mm (length) x 25.50mm (width) x 47.50mm (height).
Modular Size: 2M (2 modules).
⚙️ Technical Specifications
Device Type: Residual Current Circuit Breaker (RCCB).
Number of Poles: 2 (2P).
Rated Current: 40 А.
Sensitivity (Residual Current): 300 mА.
Type: AC-Type (responds to sinusoidal alternating residual currents).
Applicable Voltage: 230 V AC.
✔️ Advantages
Provides life-saving protection against electric shocks and prevents fire hazards from earth leakage.
High sensitivity of 300 mА, suitable for overall electrical installation protection.
Compact design (2 modules) for saving space in the panel.
Easy mounting on a DIN rail.
18.72 € /36.61 лв.
Stock in Bulgaria
Out of stock
Stock in EU
Upon request
Product code:DY02030012N
Package length: 47.50mm
Package width: 25.50mm
Package height: 47.50mm
Information about technical characteristics, equipment, country of origin and appearance of the product is for reference only and is based on the latest available information from the manufacturer.
