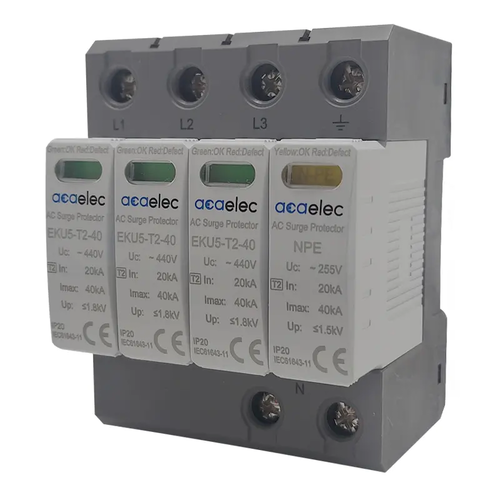

🎨 Design & Style A modular Surge Protection Device (SPD), commonly known as a Surge Arrester. The design is standard for electrical panel components—a compact housing made of durable material, designed for DIN rail mounting. It features clear labeling for type and specifications, as well as a visual indicator for operational status.
📏 Dimensions & Installation
Installation Type: Designed for mounting on a standard DIN rail inside electrical distribution boards.
Configuration: 3P+N (Three Phases plus Neutral) – Provides protection for three-phase systems. It typically occupies 4 modules of space in the panel.
⚙ Technical Specifications
Device Type: Surge Arrester/SPD (Surge Protection Device).
Protection Type: T2 (Type 2) – Main protection against voltage surges caused by indirect lightning strikes or switching operations.
Maximum Discharge Current (Imax): 40 kA (Kiloamperes).
Configuration: 3P+N (3 Poles for phases + 1 Pole for Neutral).
Application: Used to protect the entire electrical installation after the main breaker.
✅ Advantages
Reliable Protection: High surge protection capacity (40 kA), which safeguards expensive equipment and appliances.
Three-Phase Coverage: Protects three-phase systems (3P+N), critical for industrial, office, and modern residential buildings.
Industry Standard (Type 2): Meets requirements for primary protection in accordance with electrical standards.
Modular Design: Easy to integrate into existing electrical distribution boards.
