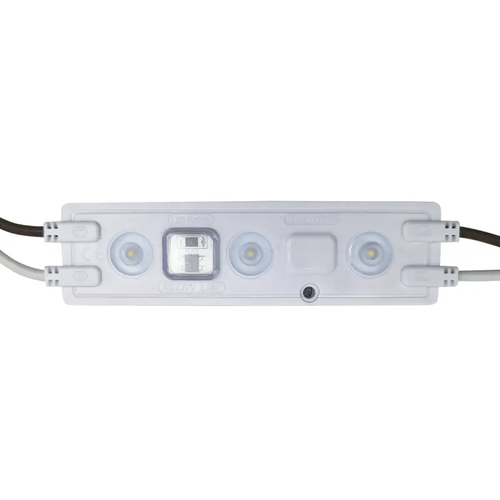

^LED SMD SIGN MODULE ABS 230V AC 2.5W 4000K 200LM IP67 155° 110x28x8.5MM 3x2835 5YRS(20PCS STRING)

Product description

🎨 Design & Style

Product Type: LED Sign Module, designed for illuminating advertising signs and channel letters.
Appearance: Compact module made of Plastic (ABS) in White color with a secondary Polycarbonate (PC) cover.
Light Color: Natural White (4000 K), ideal for clear and visible signage.
Technology: Uses 3 pieces of SMD 2835 LED chips per module.

📏 Dimensions & Mounting

Module Dimensions: Approximately 110 mm x 28 mm x 8.5 mm.
Mounting: Modules are connected in a string of 20 pieces (20PCS STRING), facilitating quick installation.
Connectivity: Up to 100 pieces of modules can be connected in one chain.
Power Supply: Connects directly to 230 V AC, eliminating the need for a separate driver.

⚙️ Technical Specifications

Power: Energy-efficient consumption of 2.5 W per module.
Luminous Flux: Provides 200 lumens per module.
Beam Angle: Extremely wide illumination angle of 155°.
Protection: Very high protection rating of IP67.
Color Rendering Index: Ra = 80.

✔️ Advantages

Water Resistance: The IP67 rating ensures full protection against dust and immersion in water, making it ideal for outdoor signage.
Efficiency: High brightness (200 lm) and wide angle (155°) for uniform illumination of large areas.
Longevity: Durability up to 50,000 hours and a 5-year warranty.
Convenience: Direct 230V power eliminates the need for expensive and bulky DC power supplies.

Product characteristics

Color Temperature (Kelvin)	4000K
IP- Fluid and Dust Protection Indicator	IP67
Electrical Protection	Class II
Lifetime (Hours)	50000hrs
Luminus Flux (Lumen)	200 lm/ module
Color Rendering Index (CRI)	Ra=80
Material (secondary)	PC - Polycarbonate
Color (main)	White
Material (main)	Plastic
With Connector	Έως 100 pcs
Voltage (Volt)	230V AC
Light Color	Natural White
Size (1 light or LED)	2835
Beam Angle/ Light Direction	155°
Warranty	5 years
Power	2,5 W/ module
LED Chip Type	SMD

5.16 € / 10.09 лв.

Minimum order from: 20 pcs.

Stock in Bulgaria

Limited quantity

Delivery 2-4 working days

Stock in EU

Upon request

Product code: 230258040SM

Information about technical characteristics, equipment, country of origin and appearance of the product is for reference only and is based on the latest available information from the manufacturer.
