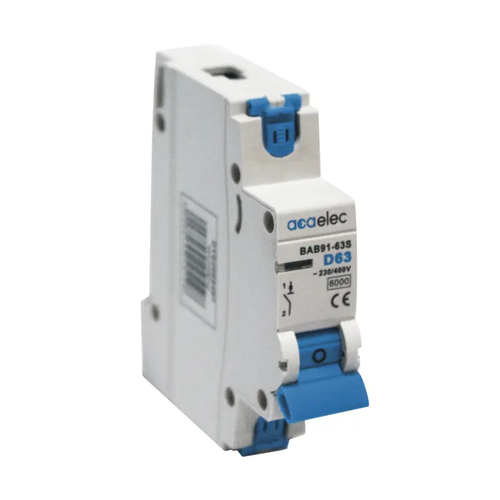

A Miniature Circuit Breaker (MCB) designed for DIN rail mounting in electrical distribution boards.
Compact, modular design, typical for DIN rail devices.
Used to protect electrical circuits from overload and short circuits.
📏 Dimensions & Installation
Installation: On a DIN rail (in an electrical panel).
Width: 1 Module (1M).
Number of poles: 1P (single pole).
⚙️ Technical Specifications
Rated Current: 63 A.
Tripping Curve: Type D (suitable for loads with high inrush current, such as motors and transformers).
Breaking Capacity: 6 kA (6000 A).
Designed for operation in systems with a nominal voltage of 230V AC (standard).
✔️ Advantages
The high rated current (63A) makes it suitable for protecting main branches or high-power loads.
The D-curve provides reliable protection for loads with large starting current peaks.
Compact 1-module design that saves space in the electrical panel.
3.60 € /7.04 лв.
Minimum order from: 12 pcs.
Stock in Bulgaria
Out of stock
Stock in EU
Upon request
Product code:DY02060497
Information about technical characteristics, equipment, country of origin and appearance of the product is for reference only and is based on the latest available information from the manufacturer.
