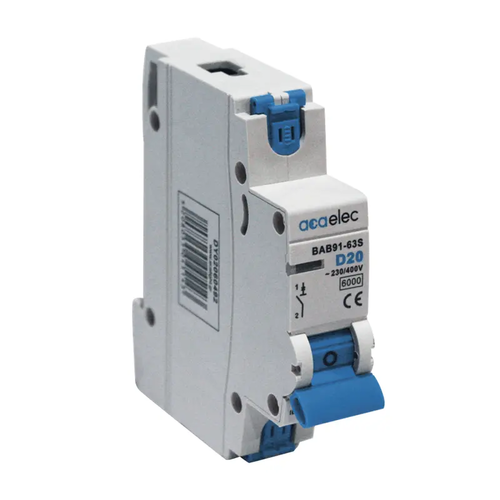

A Modular Miniature Circuit Breaker (MCB), designed for protecting electrical installations and appliances against overcurrent and short circuits.
Intended for mounting in electrical distribution boards on a DIN rail.
⚙️ Technical Specifications
Device Type: Circuit Breaker (MCB).
Number of Poles: 1P (1 Pole) – suitable for protectingsingle-phase circuits.
Rated Current: 20A.
Tripping Characteristic: D – delayed tripping, typically used for circuits that supply loads with a high initial (inductive) current, such as motors or transformers.
Breaking Capacity: 6kA (6000 Amperes) – the maximum short-circuitcurrent that the breaker can safelyinterrupt.
Number of Modules: 1M (1 Module) – occupies one standard slot on the DIN rail.
📏 Dimensions & Installation
Installation: Modular, on a DIN rail in a distribution board.
Width: 1 Module (approx. 18 mm).
✔️ Advantages
Reliableprotection against overcurrent and short circuit.
D Characteristic makes it ideal for protecting circuits with inductive loads (e.g., powerful pumps, fans).
Compact1-pole design, saving space in the distribution board.
6kA breaking capacity is standard for residential and smallcommercial installations.
3.12 € /6.10 лв.
Minimum order from: 12 pcs.
Stock in Bulgaria
Limited quantity
Delivery 2-4 working days
Stock in EU
Upon request
Product code:DY02060492
Information about technical characteristics, equipment, country of origin and appearance of the product is for reference only and is based on the latest available information from the manufacturer.
